Aeronaut 30 or 45 Internal Frame

Regular price $30.00
Add to wishlist
  • Lifetime Guarantee

    You can expect your TOM BIHN bag to give you years of hard service. Our bags are guaranteed to be free from defects in materials and workmanship for the life of the bag. That means if something goes wrong and it's our fault, we'll fix it at no charge.

    Same with your Skookum Dog gear: it'll give you years of hard service and is guaranteed to be free of defects in materials or workmanship. If something goes wrong and it's our fault, we'll fix it at no charge. If your dog chews something up or otherwise damages it, we'll repair it for a reasonable fee if it is repairable.

    Read more
  • Reviews

    Use this link to open a new tab to a regularly updated list of reviews of our bags.
    Or click here to see reviews posted by our Forum community.

Aeronaut 30 or 45 Internal Frame

Materials:

.055” thick High Density Polyethylene (HDPE)
1” / 25mm wide 6061 aluminum
Nylon webbing


Construction:

Made in USA with fabric from Korea / Japan / U.S.A.


Specs:

Weight:
Aeronaut 45 Internal Frame: 9.9 oz / 280 grams
Aeronaut 30 Internal Frame: 8.6 oz / 245 grams
Dimensions:
Aeronaut 45 Internal Frame: 11.4" (w) x 17.7" (h) / 290 (w) x 450 (h) mm
Aeronaut 30 Internal Frame: 10.2" (w) x 16.9" (h) / 260 (w) x 430 (h) mm


We present for your use two new accessories for the Aeronaut 30 and Aeronaut 45 convertible travel bags. First, we designed optional, removable Internal Frames that specifically fit (and retrofit) into the Aeronaut 30 and Aeronaut 45. There's also a new optional, removable Padded Hip Belt, which you can use together or separately with the Internal Frame (the Aeronaut Padded Hip Belt is available for purchase separately over here).

Both the Internal Frame and Padded Hip Belt are designed to add comfort and structure to the experience of carrying a more heavily-packed Aeronaut in backpack mode while waiting in long lines (well, let's hope not) at the airport or choosing to make a long trek across town to one's hotel on foot.

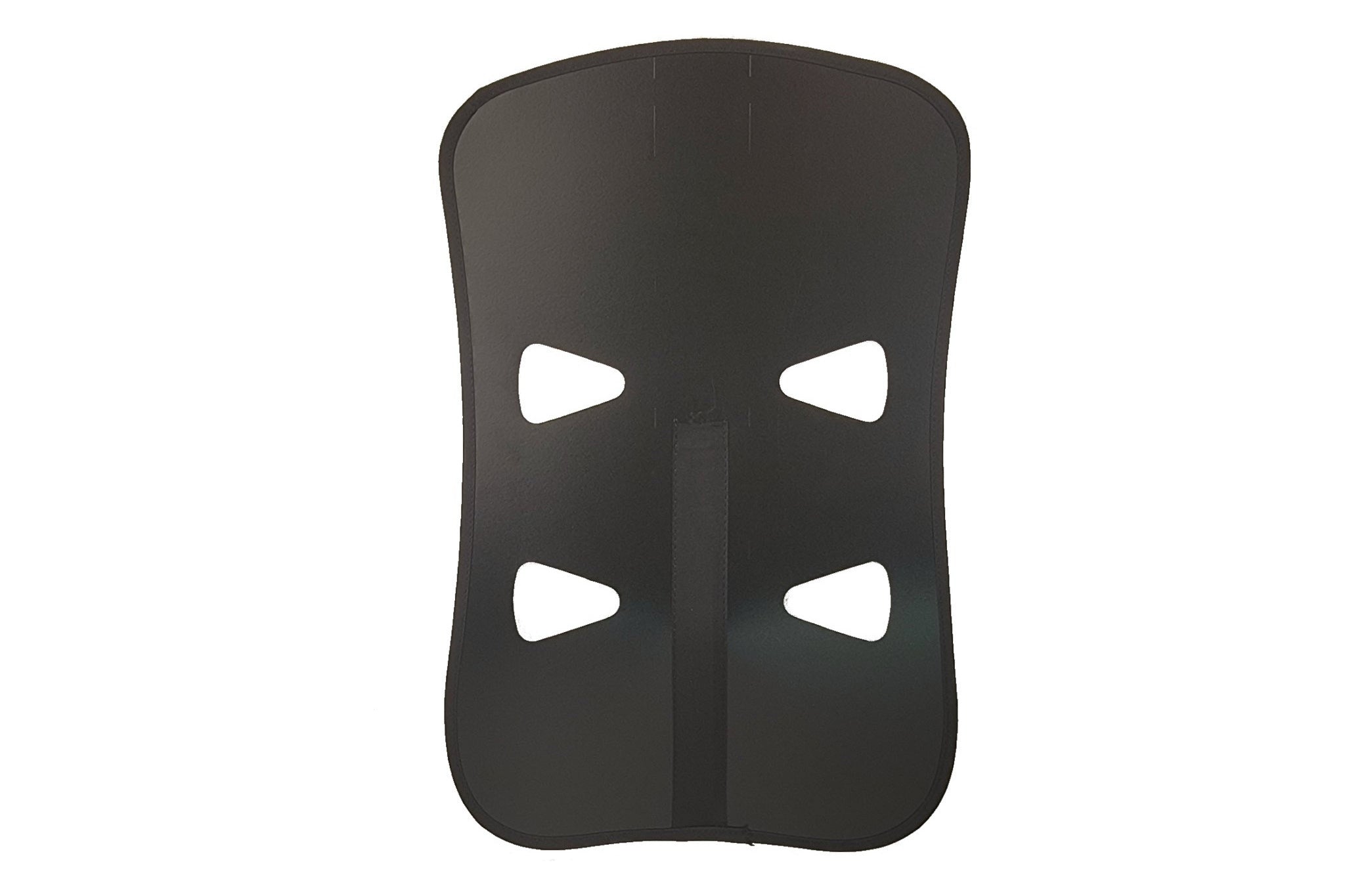

The Internal Frames are made of die-cut 0.055” / 1.4mm thick High Density Polyethylene (HDPE), with a nylon webbing sleeve sewn down the center that encases a 1” / 25mm wide 6061 aluminum stay. We’ve pre-bent the stay to a generic spinal curve; if you'd like, you can re-bend and/or adjust the curvature to best fit your own back (see here for video instructions demonstrating how to do this with the Guide's Pack frames; the same method applies to the Aeronaut frames).

To achieve the full benefit of using the Aeronaut 30 or 45 Internal Frame to shift some of the weight of the pack onto your hips, you may want to pair it with the Aeronaut Padded Hip Belt.

If you just want a frame sheet, the stay is removable, though it's worth noting that a frame sheet sans aluminum stay does just about nada when it comes to shifting the weight of the pack onto one's hips. (Read more about that here in our Our Guide to Internal Frames.)

Both sizes of frame feature four pie-slice cut-outs that save a bit of weight, but more importantly allow the frame to flex/twist with you as walk. Unlike the “lobe-in-pocket” retention system of the Guide's Pack and the Hero's Journey, the Aeronaut Internal Frame is held in position inside the bag by its hourglass shape: the frame over-centers (sort of “pops”) into place. Though the internal frame is in no way free-floating inside your bag, we wanted to make sure that the cut edge of the HDPE won’t ever be able to abrade the interior fabric panels of your Aeronaut, so we bind the edges with 400d nylon fabric . . . just to be sure.

Installing the Aeronaut 30 and 45 Internal Frames is pretty straight-forward; step-by-step instructions can be found on our blog.

Please note: Aeronaut 45s made before 2014 have a slightly shorter back compartment, which means you'll need to use the Aeronaut 30 Internal Frame. If the main compartment dividers of your Aeronaut 45 are secured with snaps as opposed to zippers, you have an Aeronaut 45 made before 2014.

In doubt as to which vintage of Aeronaut you have? emailus@tombihn.com or give us a call at 1-800-729-9607 or +1-206-652-4123.

Benefits of an Internal Frame

  • On bags with a webbing or padded hip belt (see the Aeronaut Padded Hip Belt), the vertical stability facilitated by an internal frame with an aluminum stay can help to lift some of the pack’s weight onto one's hips.
  • It creates a hard back panel that prevents less-than-carefully packed objects like a thermos or DSLR from poking one in the back.
  • It can prevent an overstuffed bag from barreling out against one's back.
  • To some folks, a rigid frame against their back (with padding between the frame and their pack) just feels right.

Why You Might not Want to Use a Frame

  • A frame adds weight to a bag. Our Aeronaut 45 Internal Frame weighs 9.9 ounces / 280 grams and our Aeronaut 30 Internal Frame weighs 8.6 ounces / 245 grams. In many cases, you can forego the frame and achieve similar benefits with careful and thoughtful packing: carry less stuff, carry lighter stuff, and arrange it all carefully so it doesn’t poke into your back.
  • Soft luggage has myriad advantages over rigid luggage, and an internal frame converts the Aeronaut into a bag that's somewhere in-between soft and rigid luggage. The rigidity offered by the internal frame could become a liability when you’re squeezing your pack into the baggage sizer, in the overhead compartment or under the seat in front of you. That's a reason it's nice to be able to remove the internal frame when you want to.
  • Some folks simply prefer the feeling of a frameless or soft-back pack.

For more on our philosophy and experience regarding internal frames, please see our Guide to Internal Frames.

More reading:

Aeronaut Frequently Asked Questions
How to Install the Aeronaut Internal Frame + Padded Hip Belt
Our Guide to Internal Frames
History of Padded Hip Belts
